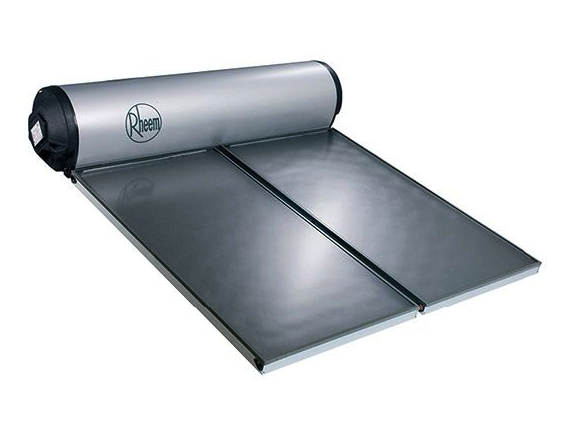

Rheem Solars 52D300/2NPT
The Rheem Hiline® solar hot water heater is ideal for warmer climates and areas with good water quality. It's a great option when ground access is limited as the storage tank and solar collectors are mounted together on the roof.
The 52D Series system directly heats the water as it passes through the collectors and then automatically circulates it back into the storage tank. This process continues whilst the sun is shining, giving you and your family ample hot water.
*The warranty periods apply to installations in a single-family domestic dwelling only. For futher details please refer to Owners Guide.
Specification
Storage Cylinder
Capacity
300 Litres
Outside Dimension
510 x 2140 mm
Weight – Full
390 Kg
Weight – Empty
90 kg
Total System
Dimension – Area on roof
2480 x 2410 mm
No. of Collectors (Typical)
2
Weight – Full
472 kg
Weight – Empty
168 kg
Warranties
Warranty Duration
52S/52C NPT200 Series
Cylinder
5 Years
Collector
5 Years
Spare Parts
3 Years
Labour
1 Year
